Request For Our Latest Prices on Stainless Steel 304L Stud Bolts in Da Nang, Vietnam!

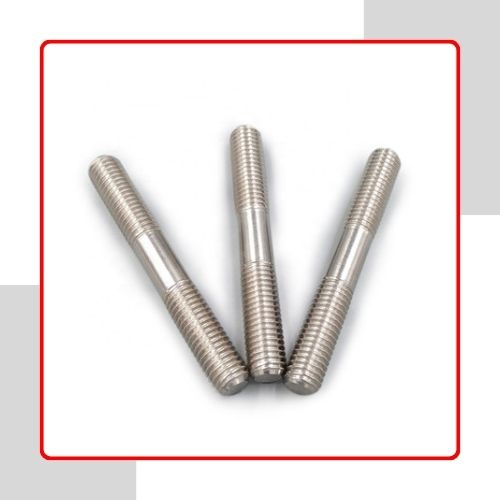

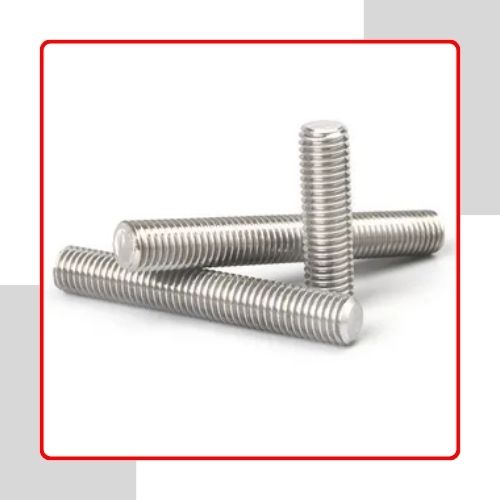

Poang Fasteners stands out as a top manufacturer and supplier of Stainless Steel 304L Stud Bolts in Da Nang, Vietnam, providing exceptional fastening solutions for industries around the globe. SS 304L, known for being the low-carbon version of 304 stainless steel, boasts improved resistance to intergranular corrosion and excellent weldability. Our stud bolts are crafted in line with ASTM, ASME, DIN, and ISO standards, ensuring they are precise and durable. Built to withstand tough environments, these bolts excel in resisting oxidation, chemicals, and atmospheric conditions, making them a go-to choice for sectors like oil & gas, petrochemicals, construction, marine, power generation, and food processing.
Stainless Steel 304L Stud Bolts are made up of 18–20% chromium, 8–12% nickel, and ≤0.03% carbon, which enhances their resistance to carbide precipitation during welding. They deliver a tensile strength of around 485 MPa, a yield strength of about 170 MPa, and an elongation of 40%, ensuring both toughness and durability. With impressive oxidation resistance up to 870°C, they retain their strength and ductility even in extreme conditions. The low carbon content not only boosts weldability but also improves corrosion resistance, making 304L stud bolts perfect for applications where welding without post-weld heat treatment is crucial for lasting performance.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304L | 0.035 max | 2 max | 1.0 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 13 | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 550 | Psi – 30000 , MPa – 205 | 35 % |
| Specification | ASTM A 193/ASME SA 193 |
| Standard | all International Standards and ASTM, DIN, BS |
| Size | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Length | 3 mm to 200 mm | Custom Sizes |
| Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
| Form | Hex, Threading, Square, Round as per Gauge Etc. |
| Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Threads available | UNF, BSW, BSF, METRIC, UNC, or as required |
| Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Test Certificate | As per EN 10204 / 3.1 Manufacturer Test Certificate, PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
| Raw materials Source | JSPL, Mukund Steel, Tata Steel, Dhamm Steel, Usha Martin,etc. |
| Packing | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |
| Surface Coating | Cadmium Coating Hot Dipped Galvanizing Coating Ptfe Coated Phosphate Coating Teflon Coating Xylon Coating Zinc Coating |
To satisfy our clients needs by providing high quality products at competitive price as per the schedule and to maintain long term relationship with our clients.
Stainless steel 304L stud bolts are widely used in applications requiring high corrosion resistance and durability. They are ideal for building and construction applications, providing safe connections to structural steel structures and facades. In the automotive, aerospace, and aerospace industries, reliable connections between engine and chassis components are ensured. In addition, these bolts are used in the pharmaceutical and food and beverage industries, where chemical and moisture resistance is important. Their versatility and durability make them suitable for a strong and wide range of applications.
Stainless Steel 304L Stud Bolts find extensive use in chemical plants, refineries, petrochemical industries, and marine engineering, thanks to their outstanding corrosion resistance. They play a vital role in heat exchangers, pressure vessels, pipelines, condensers, and structural frameworks, ensuring secure and dependable connections even in harsh conditions. In the food and pharmaceutical sectors, their hygienic properties make them ideal for equipment that undergoes frequent cleaning. Moreover, they are also employed in construction, water treatment facilities, automotive, and power generation applications, showcasing their versatility and reliability across various industries.
